500 SM-L Industrial Ice Machine – 2,500 lbs of Ice Per Day
Ice Machine Manufacturer

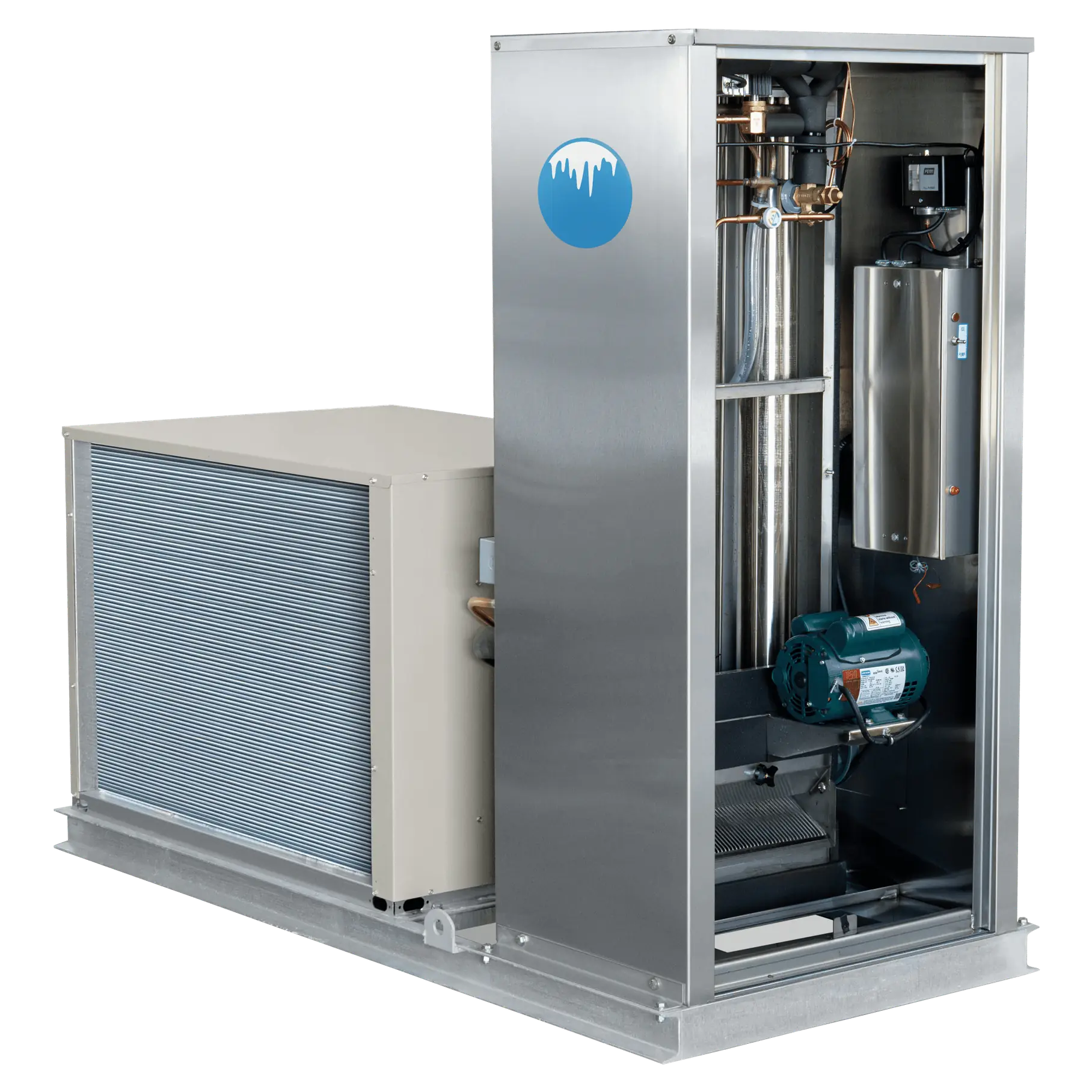

Arctic-Temp® 500 SM-LIndustrial Ice Machine
The Arctic-Temp® Model 500SM-L produces 2,500 lbs of hard-cracked ice every 24 hours. Engineered for heavy-duty use, the 500SM-L combines efficient ice production with a convenient skid-mounted design, allowing fast installation and reliable performance in industrial environments.
✅ Production Capacity: 2,500 lbs (1.25 tons) per day
✅ Voltage: 208/230V, 1-phase, 60 Hz (also available in 200V, 1-phase, 50 Hz)
✅ Compressor Type: 5.5 HP Copeland® Compressor
✅ Refrigerant: R-404A
✅ Configuration: Skid-mounted industrial ice machine (factory-assembled package with highside and lowside components mounted on a common base)
Industrial Ice Machines
Model 500 SM-LFeatures
Technical Specifications
| Specification | Details |
|---|---|
| Ice Production | 2,500 lbs (1.25 tons) per 24 hours |
| Compressor Horsepower | 5.5 HP |
| Electrical | 208/230V, 1-phase, 60 Hz |
| Refrigerant | R-404A |
| Method of Condensing | Air Remote |
| Refrigerant Charge | 15 lbs |
| Water Consumption | 240 gallons per 24 hours |
| Machine Weight (Uncrated) | 650 lbs total (evaporator + condenser) |
| Construction | Stainless steel, double-wall vertical tube evaporator |
| USDA Approval | Yes |
| Outdoor Use | Suitable for outdoor installation |
2,500 lbs / 1.25 ton Skid Mounted Ice Maker
- Highly efficient Copeland Compressor
- Double-Walled Vertical Tube Evaporators For Maximum Production
- Hot Gas Defrost for rapid harvest and quick recovery
- All Stainless Steel Welded Construction
- No moving parts in the freezing zone
- Harvest Hold (PHC) for definite defrost in varying temperature
- R-404A Refrigerant
- Factory Assembled, Fully Charged & Tested
- Suitable for Outdoor Use
- USDA Approved
In certain applications where roof mounting or custom bunker mounting is desired, it may be economical to Skid Mount the highside and lowside components on a common base in order to obtain a Packaged Ice Machine.
- ALL Packaged Industrial Ice Maker’s are fully assembled and thoroughly tested prior to shipping
- Holiday Ice can perform your custom work to make the installation easier, future service more convenient, and reduce the installation costs
IndustrialIce Machines
500 AR-L
500 SM-L
750 AR-L
750 SM-L
1000 AR-L
1000 SM-L
1500 SM-B
1500 RCU
Why ChooseHoliday Ice Inc.?
Trusted for 60+ Years
Decades of proven performance in industrial ice machine manufacturing.
Nationwide Shipping
Fast, reliable delivery of Arctic-Temp® machines across the U.S. and worldwide.
Expert Support Team
Knowledgeable technicians ready to assist with setup and troubleshooting.
Repair & Parts Service
Fast access to replacement parts and maintenance support when you need it.
Limited Warranty
Every Arctic-Temp® machine is backed by our dependable manufacturer’s warranty.
Large Capacity Ice Maker
Heavy-duty, high-volume machines engineered for long-term reliability.
Ice Machines For Your Business
SEAFOOD PROCESSING
Arctic-Temp® Industrial Ice Machines deliver large-capacity cooling for seafood processing.
MEAT PROCESSING PLANTS
Our ice machine manufacturer provides heavy-duty industrial ice makers for meat processing facilities.
PRODUCE
Arctic-Temp® Industrial Ice Makers ensure fresh, crisp produce with consistent cooling from harvest to distribution.
POULTRY
High-volume industrial ice machines maintain ideal chilling conditions for poultry operations, ensuring safety and product quality.
BAKERIES
Our ice machines support bakery production by providing dependable, energy-efficient cooling for dough preparation and temperature control.
PRISONS
Holiday Ice’s heavy-duty industrial ice makers offer durable, low-maintenance performance for institutional food service in correctional facilities.
FAQs
Ice MachineBuyer's Guide
Does Holiday Ice Inc. handle the installation of the machines?
No, Holiday Ice Inc. requires that our Arctic-Temp ice machines be installed by a qualified refrigeration mechanic, in accordance with the guidelines outlined in our service manual. Improper installation may lead to unnecessary complications and voided warranty repairs.
What is the difference between remote and skid-mounted machines?
Arctic-Temp ice machines are available in both skid-mounted and remote configurations. Skid-mounted units, designated by model numbers containing SM-L and SM-B, feature the ice machine and condensing unit on a single skid, making them ideal for customers seeking a compact footprint. Remote units, identified by model numbers with AR-L and RCU, offer flexibility by allowing the ice machine to be installed indoors or externally, with the condensing unit placed in the most convenient location, similar to how an HVAC condenser is positioned outside a home while the air handler remains inside.
Does Holiday Ice Inc. ship internationally?
Yes, we ship worldwide and currently operate in 22 countries.
What are the environmental requirements to meet our ice production?
Arctic-Temp ice maker production ratings are based on an ambient air temperature of 100°F (38°C) and an incoming water temperature of 70°F (21°C).
Are the machines outdoor-rated?
Yes, all Arctic-Temp ice machines are constructed from high-quality stainless steel, proven to be resilient in harsh environments, including coastal installations. Many of our machines have been operating for over 20 years in these environments.
Does Holiday Ice Inc. sell replacement parts?
Yes, we fully stock all components required for repairs, with overnight shipping available Monday through Friday.
What is the warranty on the machines?
Holiday Ice Inc. offers a 1-year warranty on all parts and components, with a 5-year warranty on the evaporator tubes, where the ice forms.
Does Holiday Ice Inc. offer technical support?
Yes, we provide free technical support from skilled refrigeration mechanics who can guide customers through troubleshooting steps and offer recommendations.
What shape of ice do Arctic-Temp machines produce?
All our models produce cracked ice, which is irregular in shape and has a larger surface area, keeping the product that needs to be chilled cooler for longer. Our Model 1500 produces the largest pieces of ice for maximum coverage of the product that needs to be chilled.
